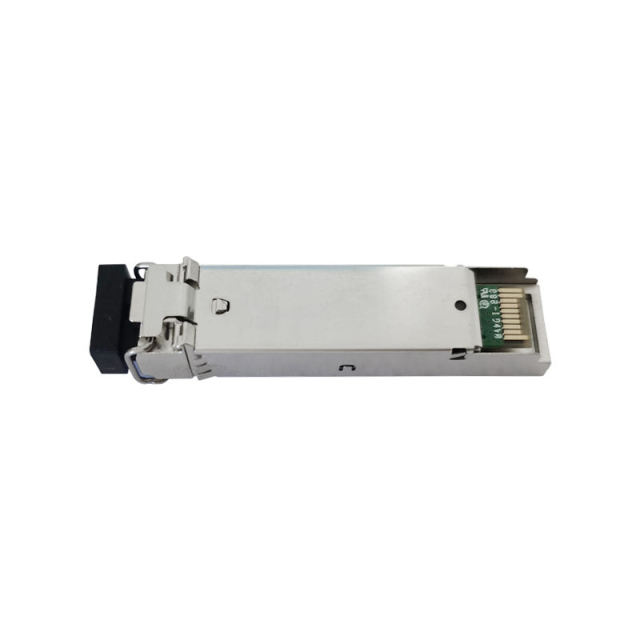

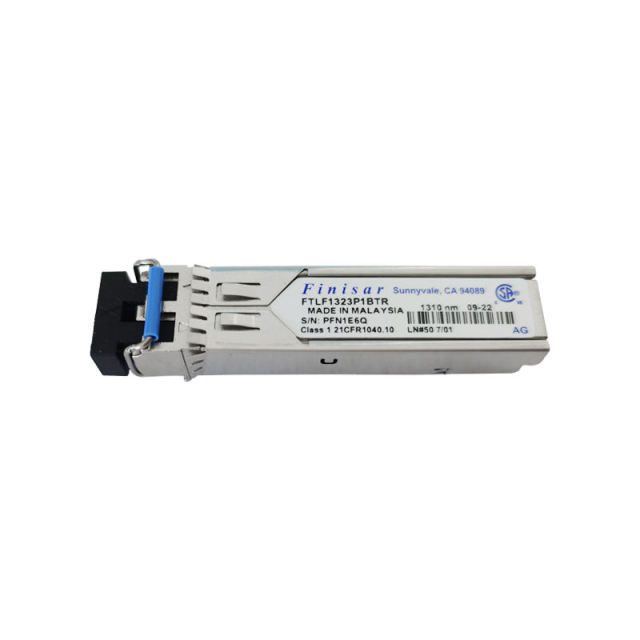

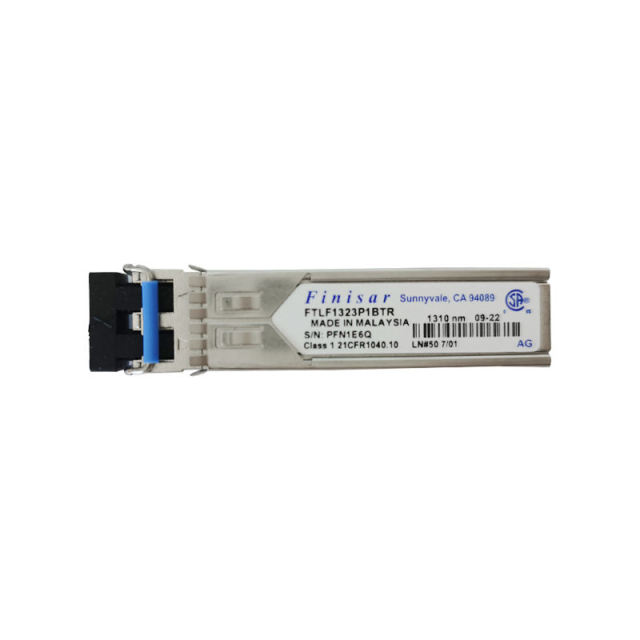

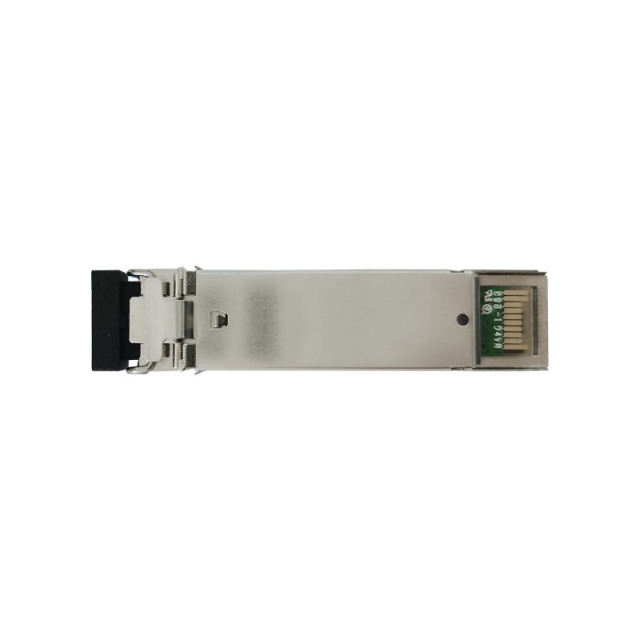

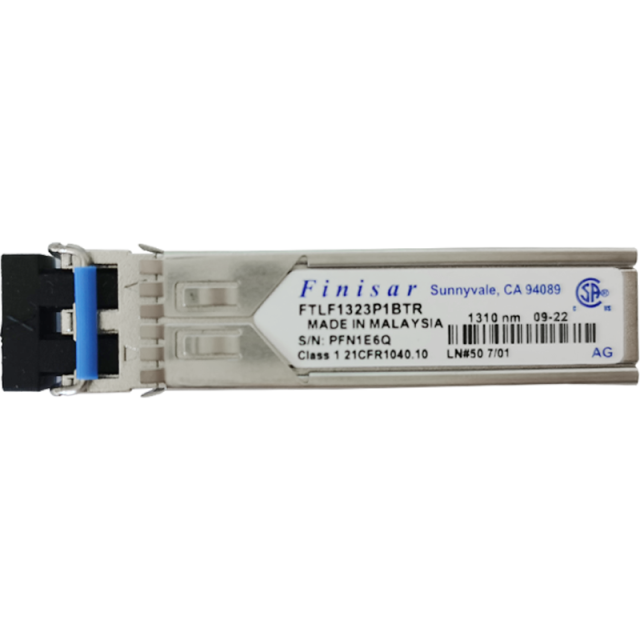

SFP Transceiver Module 155M 15km - FTLF1323P1BTR Compatible SFP <700mW Low Power Consumption

Detailed Specifications

1. General Information

• Model: FTLF1323P1BTR

• Description: Original 155M 1310nm 15km Optical Transceiver Module

• Module Type: Pluggable SFP

• Digital Diagnostics Monitoring (DDM/DOM): Supported

• Compliance: CE, Class 1 FDA & IEC60825-1 Laser Safety, INF-8074i, RoHS, SFP MSA

2. Optical Specifications

• Fiber Media Type: Single-Mode Fiber (SMF)

• TX Wavelength: 1310 nm

• RX Wavelength: 1310 nm

• TX Wavelength Bandwidth: 1260 - 1360 nm

• RX Wavelength Bandwidth: 1260 - 1360 nm

• Transmitter Type: FP Laser

• Receiver Type: PIN Photodiode

• Maximum Transmission Distance: 15 km

• Minimum Optical Budget: 19 dB

3. Data Rate & Applications

• Supported Data Rate: 100 - 155 Mbps

• Supported Applications:

  • 100M Ethernet (100 Mbps)

  • STM-1 / OC-3 (155 Mbps)

4. Electrical & Physical Specifications

• Power Supply: +3.3V Single Supply

• Low Power Dissipation: < 700 mW (typical)

• Connector: Dual LC

• Operating Temperature Range: Industrial, -45°C to +85°C

5. Optical Power Budget (Typical)

• Minimum Transmitting Power: -15 dBm

• Maximum Transmitting Power: -8 dBm

• Receiver Sensitivity: -34 dBm

• Receiver Overload: -3 dBm

6. Dispersion

• Dispersion: 110 - 200 ps/nm

7. Packaging Details

• Selling Units: Single item

• Package Size: 15 x 6 x 2 cm

• Package Weight: 0.500 kg
